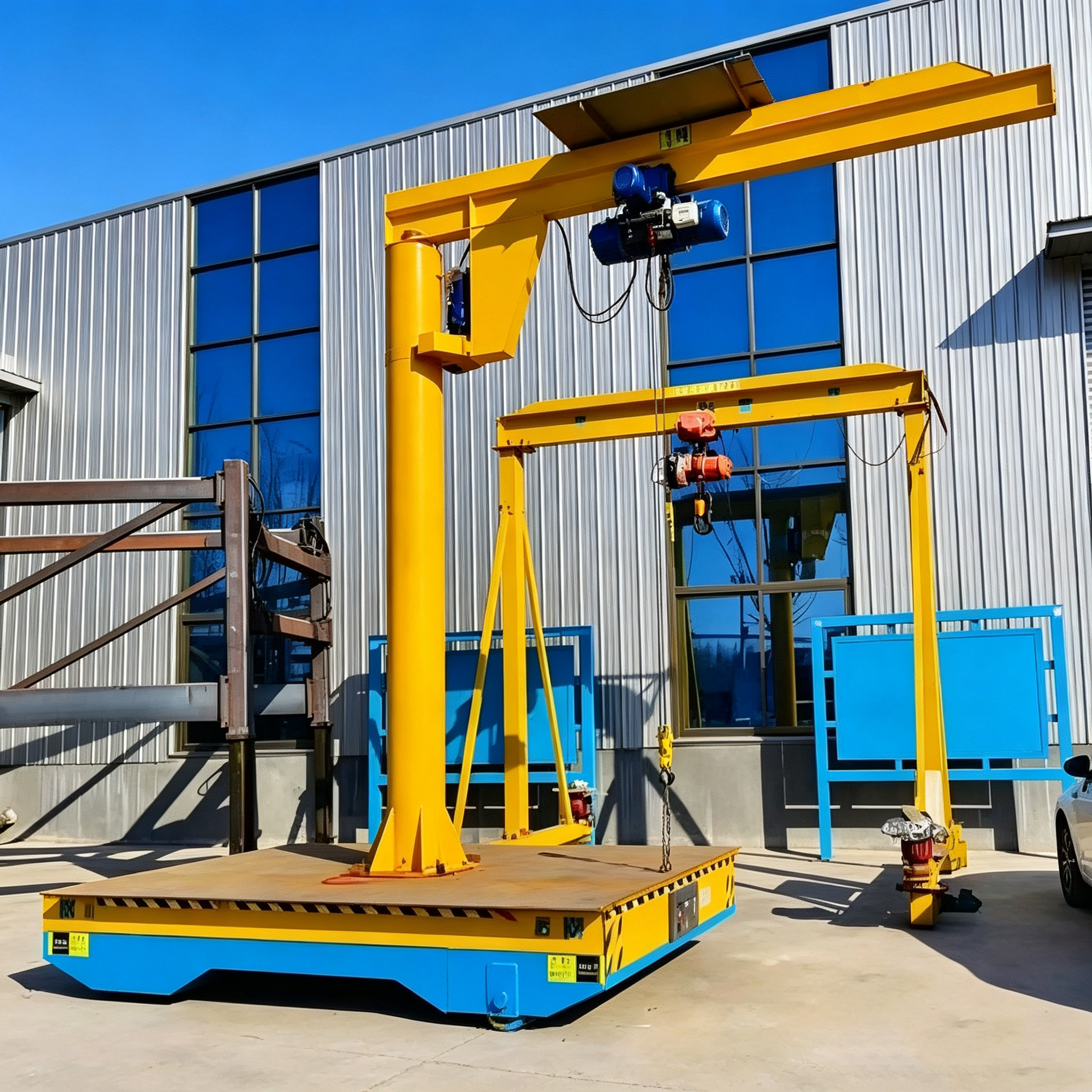

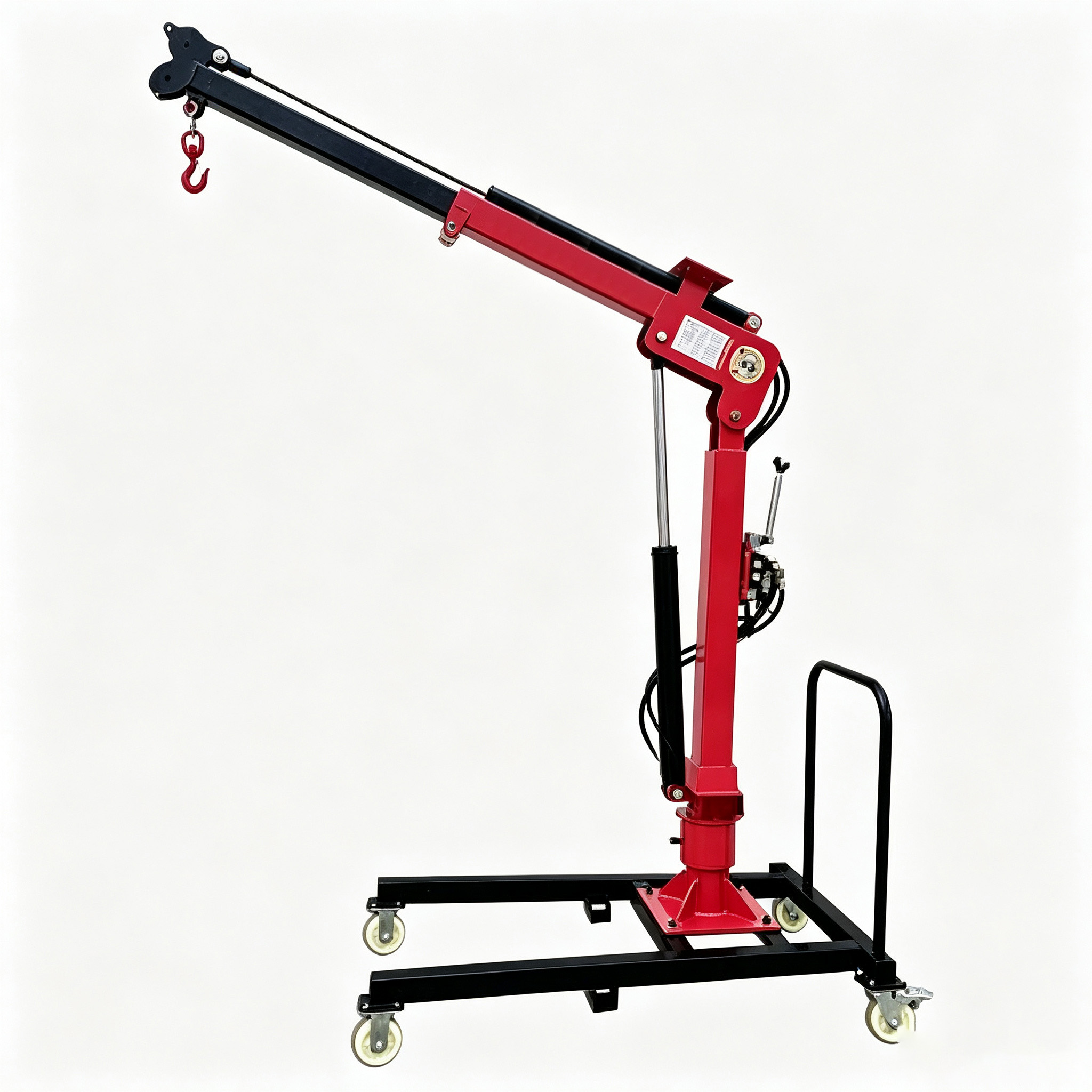

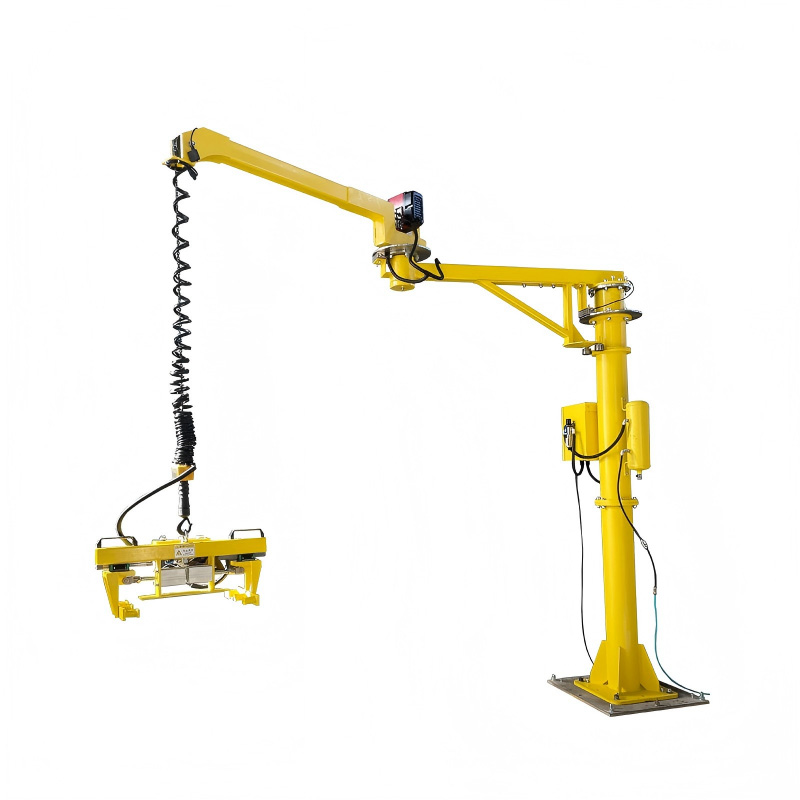

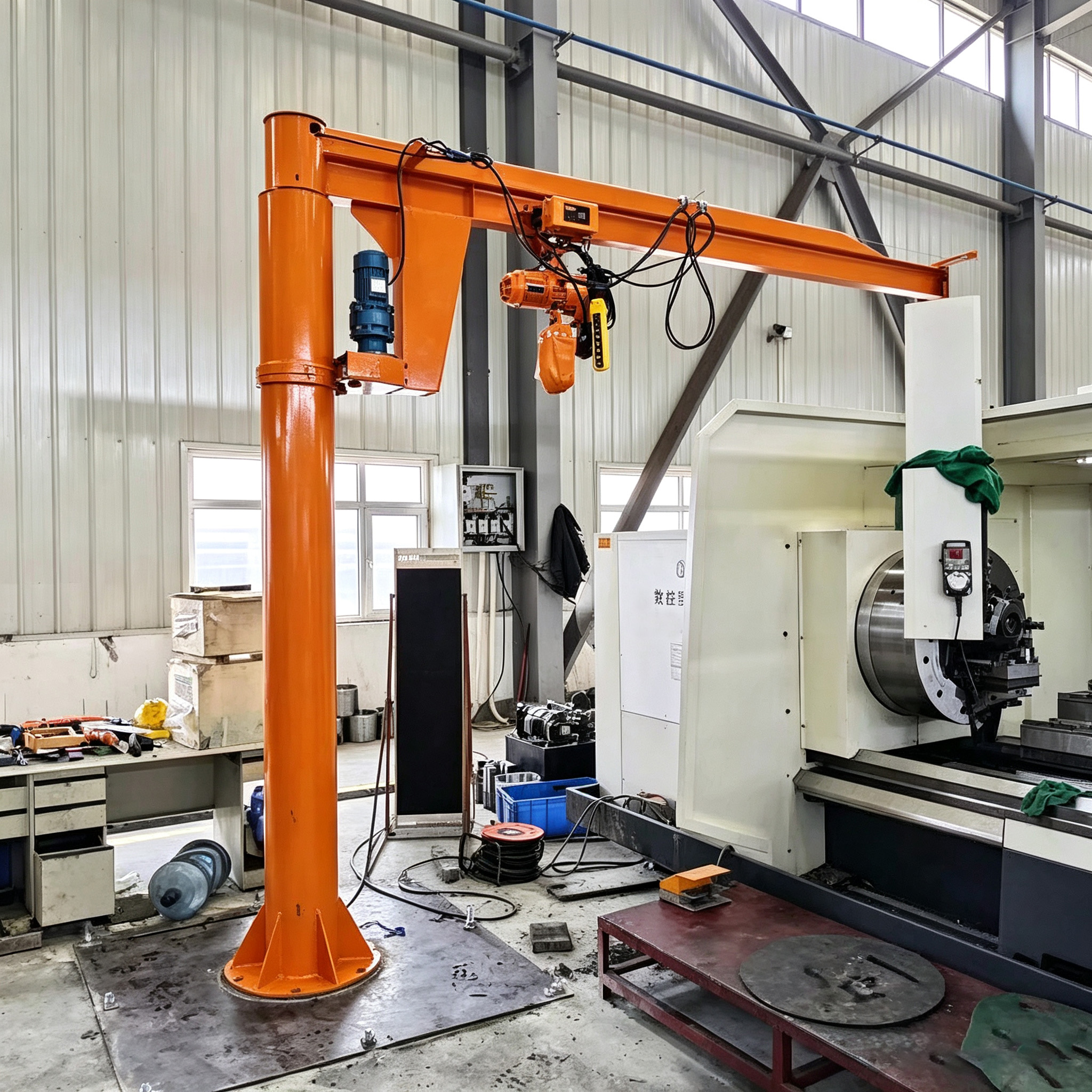

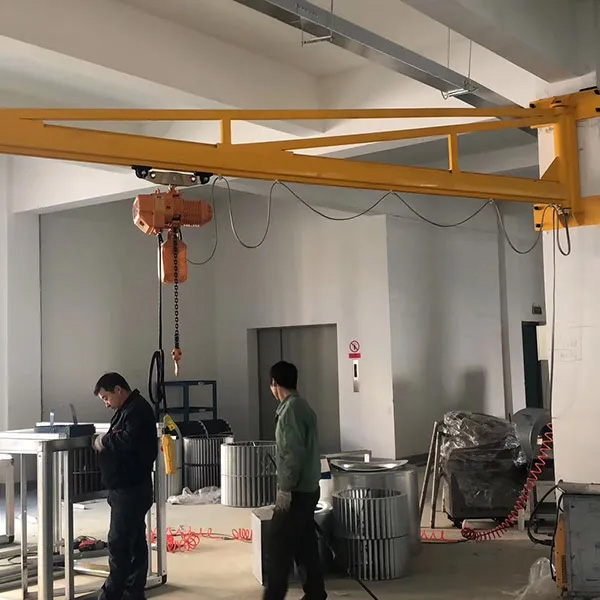

A jib crane is small‑scale light‑duty lifting equipment extensively used in workshops, processing zones and loading areas for short‑range and frequent hoisting tasks; its swingable cantilever arm works with electric chain hoists or wire rope hoists to finish lifting, lowering and horizontal material transfer. Classified by installation patterns into pillar‑mounted, wall‑mounted and mobile models, it respectively features a large rotation radius with independent foundations, floor‑space saving via mounting on factory columns, and flexible station transfer enabled by travelling wheels. We offer customizable lifting capacity, arm length, rotation angle and working voltage to adapt to varying workpiece weights and site conditions, and the crane’s compact structure, user‑friendly operation and stable performance can effectively boost local handling efficiency and cut manual labor intensity.
From structural design to safety protection, every detail is carefully engineered.
The main girder uses a high-quality carbon steel welded box structure with high rigidity and strong load capacity. Optimized by FEA to remain stable under long-term heavy loads.
Equipped with overload limiters, limit switches, buffers and multiple safety devices. The electromagnet retains magnetism during power loss to keep loads secure.
Supports floor, cabin and remote control. Modular parts with high interchangeability for easier service and lower operating costs.
Widely used in steel metallurgy, shipbuilding, ports and scrap handling. Flexible electromagnet configurations for different working conditions.
Three core mechanisms work together, with multiple configuration options for different working conditions.
Standard model parameters below; customization available for actual working conditions.
| Parameter | Standard | Optional range | Unit |
|---|---|---|---|
| Standard Rated Lifting Capacity | 20 | 5 — 50 | t |
| Standard Span | 22.5 | 10.5 — 35.5 | m |
| Lifting height | 12 | 6 — 20 | m |
| Hoisting speed | 8 | 3.5 — 16 | m/min |
| Standard Trolley Travelling Speed | 40 | 20 — 60 | m/min |
| Standard Crane Travelling Speed | 75 | 30 — 120 | m/min |
| Standard Duty Class | A6 | A5 — A7 | — |
| Standard Power Supply Voltage | 380V / 50Hz | Customizable | V/Hz |
| Standard Electromagnetic Chuck Power | 15 | 5 — 30 | kW |
| Standard Operation Mode | Remote | Floor / Cabin / Remote | — |
| Standard Total Weight | ≈ 28 | Varies by model | t |
From Korea to Vietnam, Ukraine to China, Xinjianghe electromagnetic bridge cranes serve customers worldwide.
Custom A6-duty electromagnetic bridge crane for Samsung Heavy Industries shipyard, used for hull plate handling and assembly.
Spreader-beam attachment exported to a major Vietnam steel mill for billet handling and stacking.
Designed for a Hebei steel mill; processes over 1,000 tons of billets daily with stable operation.
Ukraine export project adapted for extreme cold and international standards.
Upper rotation for 360° lifting, meeting flexible operations at a Shaanxi steel mill.
Whether standard or custom, we deliver optimal electromagnetic lifting solutions.
